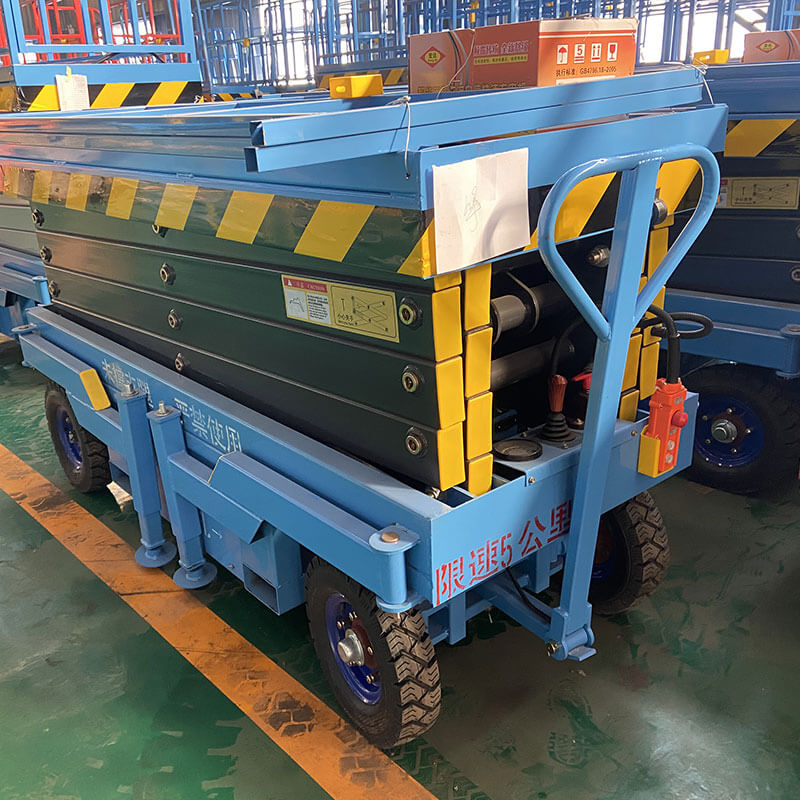

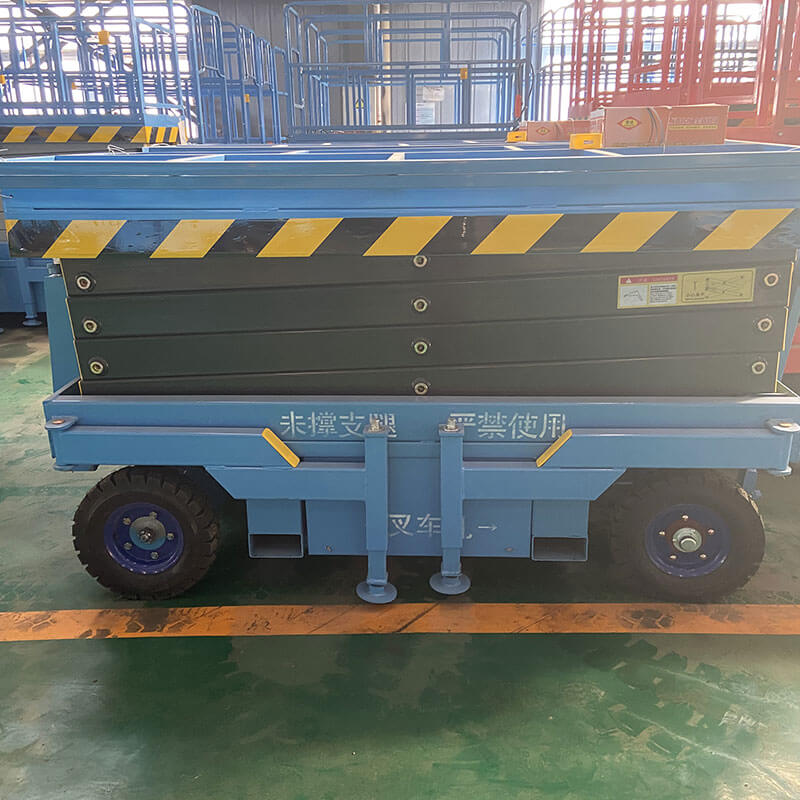

Mobile Scissor Lift

Overview:

Our mobile scissor lift provides a flexible and safe lifting solution for indoor and outdoor operations.

It is available in electric, hydraulic, or manual types and supports lifting capacities from 500 kg to 2 tons with a maximum height of 12 meters.

Designed for easy mobility, stable structure, and long service life, it is widely used for maintenance, installation, and warehouse handling tasks.

Features:

• Drive Options: DC electric, AC & DC dual power, hydraulic or manual.

• Mobility: Equipped with heavy-duty wheels for easy movement.

• Safety: Features overload protection, emergency stop, and optional explosion-proof system.

• Customization: Various configurations to meet different working conditions.

Specification:

Model	Lifting Height(m)	Load(kg)	Platform(mm)	Dimension(mm)	Dead Weight (kg)
KNCY0.5-4	4	500	2100*830	2250*950*1250	800
KNCY0.5-6	6	500	2100*830	2250*950*1260	880
KNCY0.5-7	6.8	500	2100*830	2250*950*1260	970
KNCY0.5-8	8	500	2100*930	2250*1060*1380	1050
KNCY0.5-9	9	500	2100*930	2250*1060*1500	1165
KNCY0.5-10	10	500	2100*1230	2250*1350*1530	1360
KNCY0.3-11	11	300	2100*1230	2250*1350*1650	1400
KNCY0.5-12	12	500	2550*1530	2796*1730*1810	2260
KNCY0.5-14	14	500	2812*1530	3067*1730*1810	2486
KNCY0.3-16	16	300	2812*1600	3067*1810*2080	3063
KNCY0.3-18	18	300	3070*1600	3321*1810*2080	3900
KNCY1.0-4	4	1000	2100*1200	2250*1350*1180	1250
KNCY1.0-6	6	1000	2100*1200	2250*1350*1300	1400
KNCY1.0-8	8	1000	2100*1200	2250*1350*1420	1585
KNCY1.0-10	10	1000	2100*1200	2250*1350*1530	1700
KNCY1.0-12	12	1000	2550*1530	2796*1700*1780	2560
KNCY1.0-14	14	1000	2812*1600	3067*1810*1900	3230
KNCY1.5-6	6	1500	2100*1530	2250*1750*1530	1780
KNCY1.5-8	8	1500	2100*1530	2250*1750*1690	2070
KNCY1.5-10	10	1500	2100*1500	2250*1750*1850	2250
KNCY2.0-6	6	2000	2100*1530	2250*1750*1530	1780
KNCY2.0-8	8	2000	2100*1530	2250*1750*1690	2070
KNCY2.0-10	10	2000	2100*1530	2250*1750*1850	2250

Optional Configurations：

• Power System: DC battery, AC power, AC/DC dual-use, or diesel engine.

• Mobility: Manual push, assisted drive, or trailer type.

• Platform Extensions: Extendable working deck for larger operation area.

• Safety & Control: Remote control, alarm light, automatic braking, explosion-proof system.

• Structure: Solid rubber tires, reinforced scissor arms, and pull-out outriggers.
