Rated capacity:230kg, 320kg,or customized
Lifting height:3-16m
Power: AC, Battery
Type: self-propelled, self-leveling systems
Reference Price Range: $9,690 – $25,160
Rated capacity:230kg, 320kg,or customized
Lifting height:3-16m
Power: AC, Battery
Type: self-propelled, self-leveling systems
Reference Price Range: $9,690 – $25,160

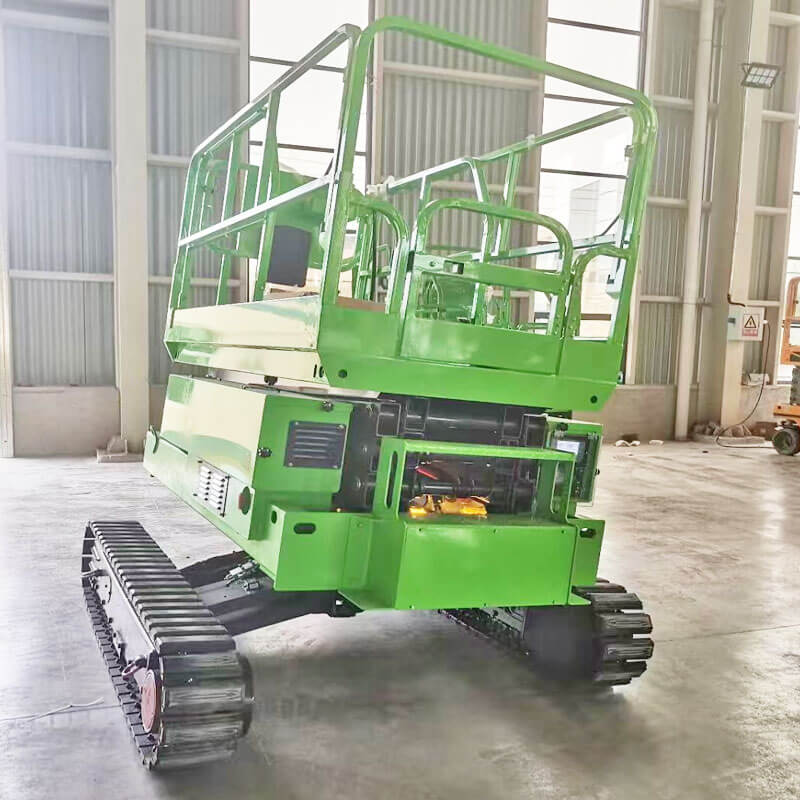

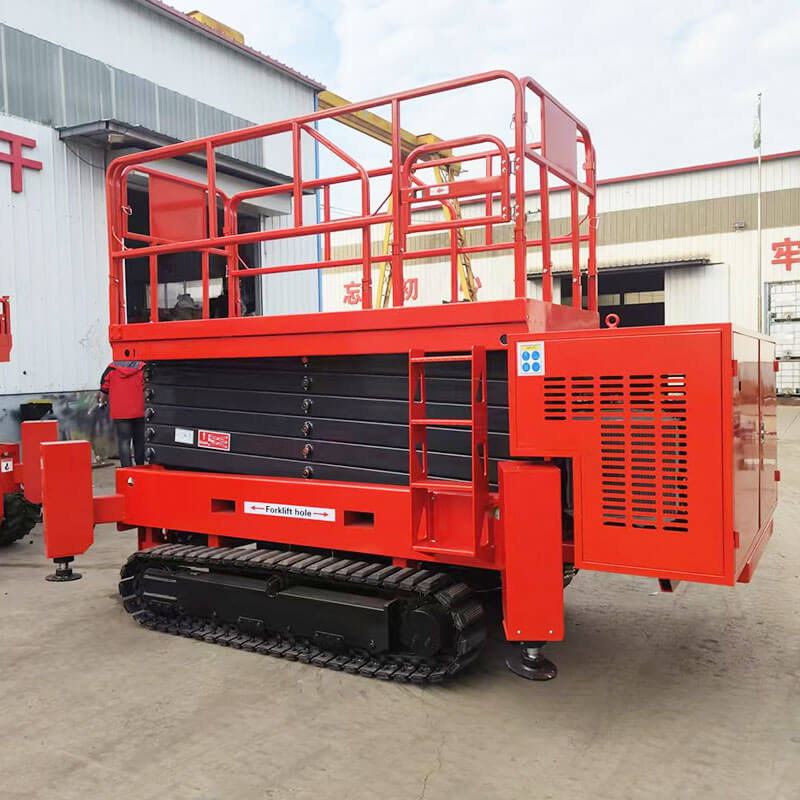

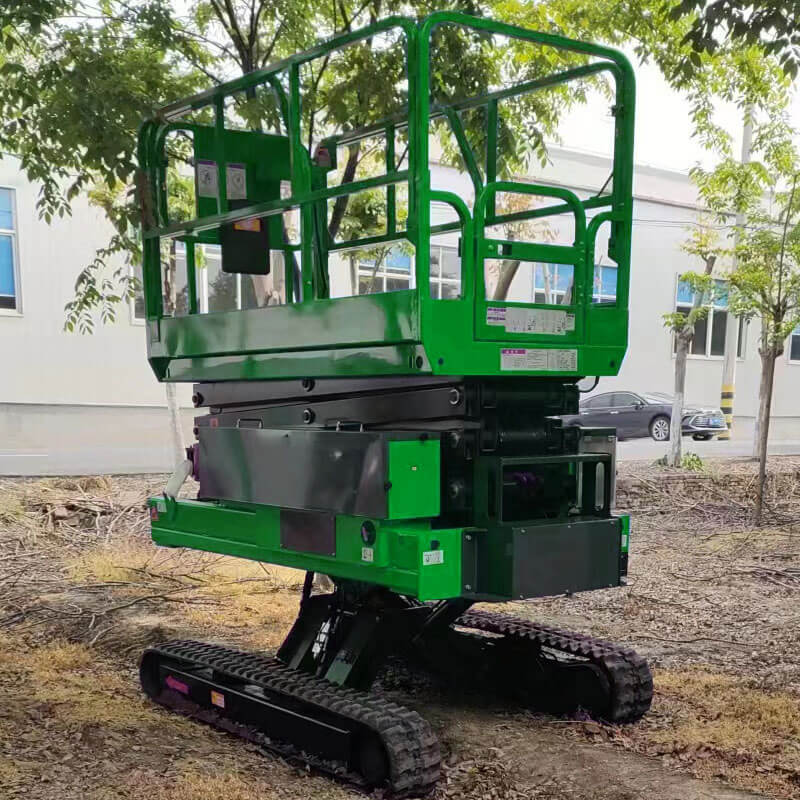

The tracked scissor lift, also known as a crawler scissor lift, is designed for both indoor and outdoor aerial work where stability, mobility, and terrain adaptability are essential. Equipped with rubber crawler tracks, these lifts can move smoothly and safely across mud, sand, gravel, slopes, courtyards, and uneven roads without damaging the ground.
Due to their lightweight structure and narrow chassis, tracked scissor lifts can easily pass through elevators, standard doorways, gates, public buildings, and narrow job sites, making them ideal for indoor maintenance and outdoor construction tasks.
KCCL tracked scissor lift run on electric power (AC or battery), offering zero emissions, low noise, and environmentally friendly operation—perfect for residential, commercial, and industrial environments.
With strong traction and excellent gradeability, tracked scissor lifts climb slopes with ease, and KCCL tracked scissor lift are equipped with self-propelled and self-leveling systems to ensure a stable platform on uneven ground. The weighted chassis design often eliminates the need for outriggers, improving setup speed and efficiency.
Whether you need a machine for harsh terrain, confined spaces, or areas without power supply, KCCL crawler tracked scissor lift provides a reliable, energy-saving, and high-performance working solution.

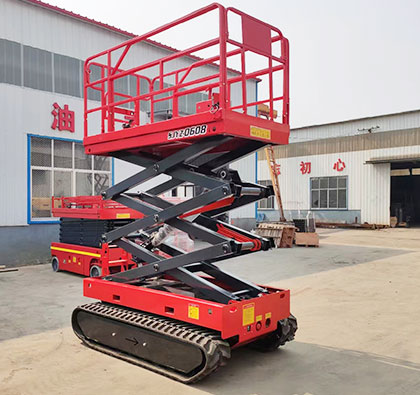

![]() | Self-propelled Tracked Scissor Lift FeatureCompact & Lightweight – Can pass through elevators, gates, and narrow spaces. Electric + Crawler Drive – Low noise and strong off-road passability. High-Capacity Battery – Longer endurance and reliable operation. Zero Emissions – Pure electric drive, eco-friendly and quiet. Neutral / In-place Steering – Suitable for tight or complex job sites. Easy Maintenance – Simple internal layout for quick service. Strong Gradeability – Stable movement on slopes and rough terrain. |

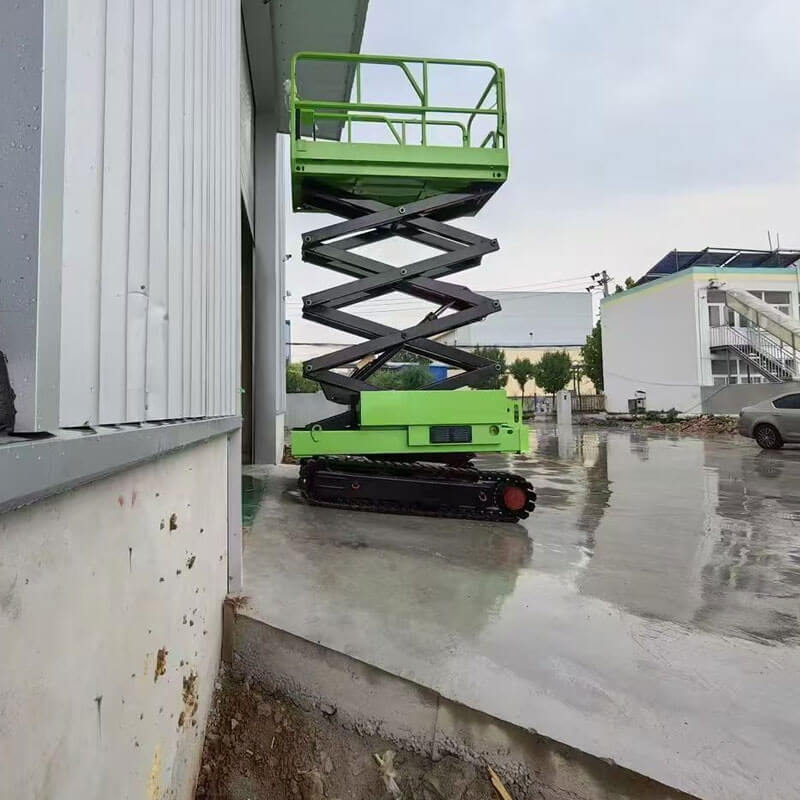

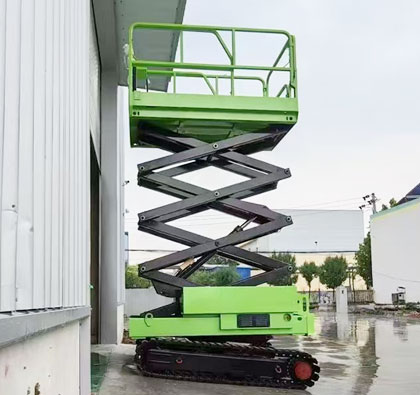

![]() | Self LevelingTracked Scissor Lift FeatureAutomatic Leveling: One-click self-leveling on uneven, staggered, or sloped surfaces. Strong Gradeability: Capable of working on slopes up to 20% with stable performance. Pure Electric Drive: Zero emissions, low noise, and neutral steering for restricted or confined worksites. Long Battery Endurance: High-capacity power system supports long working hours. Easy Maintenance: Simple internal layout for quick inspection and servicing.. |
Self-propelled Tracked Scissor Lift Specification | |||||
Model | Platform Size) | Load(kg) | Dimensions(m) | Extension Platform Size | Weight(kg) |
KN0608LD | 2.27×1.12 | 450 | 2.47×1.39×1.745 | 0.9 | 2400 |
KN0810LD | 2.27×1.12 | 450 | 2.47×1.39×1.865 | 0.9 | 2550 |
KN1012LD | 2.27×1.12 | 320 | 2.47×1.39×2.53 | 0.9 | 2840 |
KN1214LD | 2.27×1.12 | 320 | 2.47×1.39×2.67 | 0.9 | 3480 |
KN0645ZS | 1.23×0.655 | 200 | 1.27×0.79×2.05 | 0.55 | 790 |
Self Leveling Tracked Scissor Lift Specification | |||
| Model | KZ08TSL | KZ10TSL | KZ12TSL |
| Rated Load | 250kg | 250kg | 250kg |
| Max Platform Height | 8.3m | 10m | 12m |
| Max Working Height | 10.3m | 12m | 14m |
| Machine Length | 2530mm | 2530mm | 2530mm |
| Machine Width (Retracted) | 1770mm | 1770mm | 1770mm |
| Machine Height (Retracted) | 2432mm | 2582mm | 2712mm |
| Platform Dimensions | 2280×1136×1260mm | 2280×1136×1260mm | 2280×1136×1260mm |
| Length of Extended Platform | 900mm | 900mm | 900mm |
| Weight | 3398kg | 3698kg | 3998kg |
| Battery | 8×6V (200Ah) | 8×6V (200Ah) | 8×6V (200Ah) |
| Charger | 30A | 30A | 30A |
